Keisei 3000 series

The Keisei 3000 series (京成3000形) is a DC electric multiple unit (EMU) train type operated by the private railway operator Keisei Electric Railway on commuter services in the Tokyo area of Japan since 2003.[4] A total of 19 eight-car sets and 29 six-car sets have been built by J-TREC (formerly Tokyu Car Corporation) and Nippon Sharyo between 2002 and 2019.[2]

Keisei 3000 series

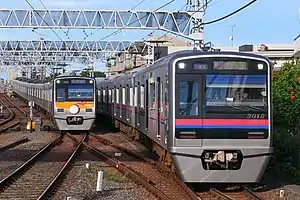

8-car set 3054 (left) and 6-car set 3018 (right) approaching Keisei Takasago Station, September 2020
In service2003–Present
ManufacturerJ-TREC, Nippon Sharyo, Tokyu Car Corporation
Constructed2002–2019[1]
Entered service1 February 2003
Number built326 vehicles (48 sets) (as of February 2019)[2]
Number in service252 vehicles (38 sets) (as of 1 April 2016)
Formation6/8 cars per trainset
Fleet numbers3001–3042, 3051–3056
Capacity776 passengers (6-car)
1,042 passengers (8-car)
Operator(s)Keisei Electric Railway
Line(s) served
Specifications
Car body constructionStainless steel
Car length18,000 mm (59 ft 1 in)
Width2,768 mm (9 ft 1 in)
Height4,050 mm (13 ft 3 in)
Doors3 pairs per side
Maximum speedDesign: 120–130 km/h (75–80 mph)
Traction systemVariable frequency (IGBT/SiC)
Acceleration3.5 km/h/s
Deceleration4.0 km/h/s (service)
4.5 km/h/s (emergency)
Electric system(s)1,500 V DC overhead catenary
Current collection methodSingle-arm pantograph
BogiesFS-564 (motored), FS-064 (trailer)
Safety system(s)ATS
Track gauge1,435 mm (4 ft 8+1⁄2 in)

Operations

The eight-car sets are used on inter-running services via the Toei Asakusa Line to and from the Keikyu Main Line.[5]

Seventh-batch eight-car sets (often referred to as the 3050 series) are primarily used on the Narita Sky Access Line.[6]

Formations

As of 1 April 2016, the fleet consists of 12 eight-car sets (3001, 3026 to 3030, and 3051 to 3056) and 26 six-car sets (3002 to 3025 and 3031 to 3032) formed as shown below.[5] Car 1 is at the Narita Airport end.[7]

8-car sets
Car No.12345678
Designation M2cNM1NTNM2M1'TSM1SM2cS
Numbering 30xx-130xx-230xx-330xx-430xx-530xx-630xx-730xx-8
Weight (t) 33.033.027.030.032.027.033.033.0
Capacity (total/seated) 122/43133/52133/52133/52133/52133/52133/52122/43
  • "xx" corresponds to the set number.
  • Cars 2 and 7 each have two single-arm pantographs, and car 5 is fitted with one.[5]

6-car sets
Car No.123456
Designation M2cNM1NTNTSM1SM2cS
Numbering 30xx-130xx-230xx-330xx-630xx-730xx-8
Weight (t) 33.033.027.027.033.033.0
Capacity (total/seated) 122/43133/52133/52133/52133/52122/43
  • "xx" corresponds to the set number.
  • Cars 2 and 5 each have two single-arm pantographs.[5]

Interior

Seating accommodation consists of longitudinal bench seating throughout.[8] From 31 March 2013, WiMAX wireless broadband internet access was provided on all sets numbered 3051 onward.[9]

  • Interior view (3000 series)
  • Interior view (3050 series)
  • Driver's cab
  • Multilingual LCD passenger information display, showing information in Japanese

History

An eighth eight-car set, 3026, was delivered from the Nippon Sharyo factory in Toyokawa, Aichi in January 2013, approximately three years after the previous set was built.[10]

Fleet build details

The build histories for the most recent 3000 series sets are as shown below.[5] Two six-car sets, 3031 and 3032, were delivered during fiscal 2015, entering revenue service in February and March 2016 respectively.[11] These trains feature interior LED lighting.[11]

Set No.ManufacturerDate delivered
3026Nippon Sharyo4 February 2013
3027J-TREC, Yokohama4 March 2013
3028Nippon Sharyo24 February 2014
3029J-TREC, Yokohama16 March 2015
3030Nippon Sharyo3 February 2015
3031Nippon Sharyo9 February 2016
3032J-TREC, Yokohama29 February 2016
3033J-TREC, YokohamaFebruary 2017[12]
3034Nippon SharyoFebruary 2017[12]
3035Nippon SharyoFebruary 2017[13]
3036Nippon SharyoJanuary 2018[14]
3037Nippon SharyoFebruary 2018[15]
3038Nippon SharyoFebruary 2018[16]
3039Nippon SharyoAugust 2018[17]
3041Nippon SharyoFebruary 2019[18]
3042Nippon SharyoFebruary 2019[1]

Livery variations

Sets 3051 to 3056 were delivered with a blue airport-access livery.

In 2019, the livery of set 3052 was changed to match that of the then-new Keisei 3100 series trains, with four other 3050 subseries sets scheduled to be re-liveried the same way in the future.[19]

Starting from December 2019, 3050 subseries trains were re-liveried to match that of the 3000 series fleet. As of November 2021, sets 3051, 3052, 3053, and 3054[20] have been re-liveried.[21][22] [23]

  • Set 3056 with the blue airport scheme, May 2017
  • Set 3052 at Aoto Station with the updated orange scheme, November 2019
  • Set 3053 with the standard 3000 series livery, July 2021
