Meitetsu 9500 series

The Meitetsu 9500 series (名鉄9500系) is an electric multiple unit (EMU) train type operated by the private railway operator Meitetsu in Japan since 2019.

Meitetsu 9500 series

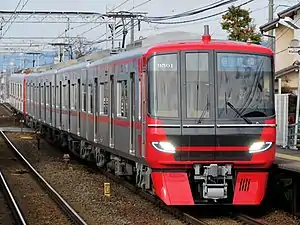

A 9500 series train in December 2019
ManufacturerNippon Sharyo
Replaced5300 series, 5700 series
Constructed2019, 2020
Entered service1 December 2019
Number under construction8 vehicles (2 sets)
Number built8 vehicles (2 sets)
Number in service8 vehicles (2 sets)
Formation9500 series: 4 cars per trainset
9100 series: 2 cars per trainset
Operator(s)Meitetsu
Line(s) servedNagoya Main Line
Specifications
Car length18,385 mm (60 ft 3.8 in) (end car)
18,230 mm (59 ft 10 in) (intermediate car)
Width2,744 mm (9 ft 0 in)
Height4,016 mm (13 ft 2.1 in)
Doors3 pairs per side
Maximum speed120 km/h (75 mph)
Traction systemVariable frequency (SiC)
Electric system(s)1,500 V DC overhead catenary
Current collection methodPantograph
Track gauge1,067 mm (3 ft 6 in)

A two-car version is designated as 9100 series.[1]

Formation

9500 series trains are formed as follows, with four cars per set.[2]

CarTcMTMc
Capacity 125137137125

9100 series trains are formed as follows, with two cars per set.[2]

CarTcMc
Capacity 125125

Interior

The trains are equipped with CCTV cameras, multilingual passenger information displays, and free Wi-Fi.[3]

  • Interior view
  • Passenger information display

History

Meitetsu announced the construction of four 9500 series commuter trains as part of their capital investment plan on March 25, 2019.[3] One set was delivered from the Nippon Sharyo Toyokawa plant over July 8 and July 9, 2019.[4] Set 9501 was first tested at Maigi inspection center in early July 2019.[5] Trial operation on the Nagoya Main Line began on July 29, 2019.[6]

Sets 9501 and 9502 entered service on December 1, 2019.[7]

9100 series trains entered service in January 2021.[8]
