Keikyu 600 series

The Keikyu 600 series (京急600形) is an electric multiple unit (EMU) train type operated by private railway operator Keikyu on commuter services in the Tokyo area of Japan. First introduced in 1994, a total of eight 8-car sets and six 4-car sets were built by Tokyu Car Corporation and Kawasaki Heavy Industries to replace the ageing 1000 series sets on limited express services.[1]

This article is about the Keikyu rolling stock introduced from 1994. For the Keikyu rolling stock type that used this classification from 1966 until 1986, see Keikyu 700 series (1956).

Keikyu 600 series

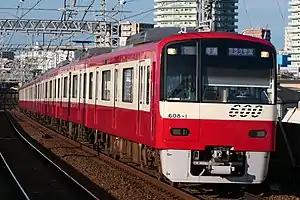

Set 608 in July 2021
In service1994–present
ManufacturerTokyu Car Corporation, Kawasaki Heavy Industries
Replaced1000 series
Entered service1994
Refurbished2009–2014
Number built88 vehicles (14 sets)
Number in service88 vehicles (14 sets)
Formation4/8 cars per trainset
Fleet numbers
  • 601–608 (8-car sets)
  • 651–656 (4-car sets)
Operator(s)Keikyu
Specifications
Car body constructionAluminium
Car length18,000 mm (59 ft 1 in)
Width2,830 mm (9 ft 3 in)
Doors3 pairs per side
Maximum speed120 km/h (75 mph)
Traction systemVariable frequency (GTO)
Electric system(s)1,500 V DC Overhead catenary
Current collection methodPantograph
Track gauge1,435 mm (4 ft 8+1⁄2 in)

Formations

As of 1 April 2016, the fleet consists of eight eight-car sets and six four-car sets (classified 650 series).[2]

8-car sets

The eight-car sets 601 to 607 are formed as follows, with six motored (M) cars and two trailer (T) cars.[2]

Designation M1cM2TuTsM1'M2M1M2c
Numbering 60x-160x-260x-360x-460x-560x-660x-760x-8
  • The "x" in the car numbers corresponds to the set number.
  • The "M1c" and "M1" cars are each fitted with one lozenge-type pantograph, and the "M1'" car is fitted with two pantographs.[2]

The eight-car set 608 is formed as follows, with four motored (M) cars and four trailer (T) cars.[2]

Designation MucTTp1MuMsTTp1Msc
Numbering 608-1608-2608-3608-4608-5608-6608-7608-8

The two "Tp1" cars are each fitted with two single-arm pantographs.[2]

4-car sets

The four-car sets are formed as follows, with two motored (M) cars and two trailer (T) cars.[2]

Designation MucTTp2Msc
Numbering 65x-165x-265x-365x-4

The "Tp2" car is fitted with two single-arm pantographs.[2]

Liveries

Set 606 is painted in a special "Blue Sky Train" livery.[2]

  • Set 601 in original colour scheme in July 1995
  • Set 651 in later livery in June 2010
  • Refurbished set 601 in October 2020
  • Set 606 in "Blue Sky Train" livery in July 2021

Refurbishment

The 600 series underwent refurbishment from August 2009 to March 2014. Modifications included were replacing the wiper cover with a slit of the model number, similar to those found on the 2100 series and N1000 series, a narrower skirt, LED side lights, and a pair of LCD information screens above the doorways.

Interior

The first batch of sets introduced featured transverse facing seating bays throughout, but later sets featured longitudinal seating. From 2004, the earlier sets were modified with some transverse seating bays replaced by longitudinal seats.[1]

  • Interior view showing transverse seating in September 2010
  • Interior view showing longitudinal seating in September 2010
  • Priority seating, August 2014
  • Retractable Twin-gle seat
