Toei Class E5000

The E5000 (E5000形) is a class of four DC electric locomotives operated by Tokyo Metropolitan Bureau of Transportation (Toei) in Japan.

Toei Class E5000

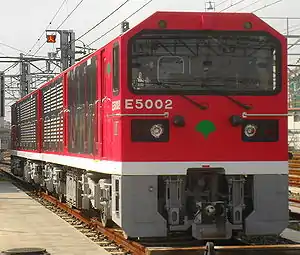

E5000 class loco number E5002, October 2006
Type and origin
Power typeElectric
BuilderKawasaki Heavy Industries
Total produced4
Specifications
Configuration:
​
 • UICBo-Bo
Gauge1,435 mm (4 ft 8+1⁄2 in) standard gauge
Length12.5 m (41 ft 1⁄8 in)
Width2.47 m (8 ft 1+1⁄4 in)
Height3,145 mm (10 ft 3+7⁄8 in)
Electric system/s1,500 V DC (nominal) from overhead catenary
Current pickup(s)Pantograph
Traction motors4 × 190 kW (250 hp) 3-phase AC induction motor, 2-level IGBT–VVVF inverter control
Original: Siemens T-INV5
2017 replacement: Toyo Denki
Performance figures
Maximum speed70 km/h (45 mph)
Power output760 kW (1,020 hp)
Career
OperatorsTokyo Metropolitan Bureau of Transportation
Number in class4
NumbersMC1: E5001, E5003
MC2: E5002, E5004
LocaleTokyo
Delivered2005

Four locos (numbered E5001 to E5004) were delivered from Kawasaki Heavy Industries in 2005 for use in hauling linear-motor powered Ōedo Line trainsets to the Magome Workshops on the Asakusa Line in Ōta, Tokyo for heavy overhaul from 2006, following the completion of the Shiodome Link Line.[1] They are single-ended locomotives which work as permanently coupled pairs.[2]
