Tokyu 2020 series

The Tokyu 2020 series (東急2020系, Tōkyū 2020-kei) is an electric multiple unit (EMU) commuter train type used by the Japanese private railway operator Tokyu Corporation in the Tokyo area since March 2018.[1] The 2020 series is used primarily on the Tokyu Den-en-toshi Line while its derivatives, the 3020 series (3020系, 3020-kei) and the 6020 series (6020系, 6020-kei), are used mainly on the Tokyu Meguro Line[2] and Tokyu Oimachi Line[3] respectively.

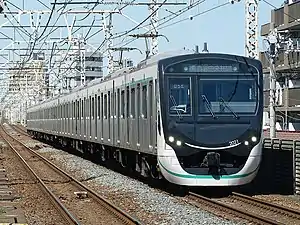

A Den-en-toshi Line 2020 series set in August 2021

Design

The 2020 series trains were built by Japan Transport Engineering Company (J-TREC) as part of its "Sustina S24 Series" family of 20-metre long four-door stainless steel cars.[4] The styling of the trains was overseen by Tanseisha, a company involved in designing commercial buildings along the Tokyu route.[1]

The classification "2020 series" for the trains was chosen to mark the year 2020 in which the Tokyo Olympics are to be held and in which Tokyu celebrates its 100th anniversary.[1]

Variants
  •   2020 series: 10-car sets used on the Tokyu Den-en-toshi Line since March 2018
  •   3020 series: 6-car (future 8-car) sets used on the Tokyu Meguro Line since January 2020
  •   6020 series: 7-car sets used on the Tokyu Oimachi Line since March 2018

2020 series
Tokyu 2020 series
The first set, 2121, in October 2018
In serviceMarch 2018–Present
ManufacturerJ-TREC
DesignerTanseisha (overseer)
Built atYokohama/Niitsu
Family nameSustina S24 series
Replaced2000 series, 8500 series, 8590 series
Constructed2017–
Entered service28 March 2018
Number under construction40 vehicles
Number built278 vehicles (excluding 2 former 6020 series cars; as of 26 August 2021)[5]
Number in service280 vehicles (28 sets)[5]
Formation10 cars per trainset
Fleet numbers2121–
Operator(s) Tokyu Corporation
Depot(s)Nagatsuta
Line(s) served
Specifications
Car body constructionStainless steel
Car length20,000 mm (65 ft 7+3⁄8 in) (intermediate cars)
20,470 mm (67 ft 2 in) (end cars
Width2,788 mm (9 ft 1+3⁄4 in)
Height4,046 mm (13 ft 3+1⁄4 in) (not including pantograph)
Floor height1,130 mm (3 ft 8+1⁄2 in)
Doors4 pairs per side
Maximum speed110 km/h (70 mph) (Design speed)
Traction systemVariable frequency (SiC-MOSFET)
Acceleration3.3 km/(h⋅s) (2.1 mph/s)
Deceleration4.0 km/(h⋅s) (2.5 mph/s) (service brake)
4.5 km/(h⋅s) (2.8 mph/s) (emergency brake)
Electric system(s)1,500 V DC Overhead catenary
Current collection methodPantograph
BogiesTS-1041 (motored), TS-1042 (trailer)
Track gauge1,067 mm (3 ft 6 in)

Details of the 2020 series were officially announced on 17 March 2017.[1] Three ten-car sets (30 vehicles) are scheduled to be delivered during fiscal 2017, entering service in spring 2018,[6] with further sets introduced over the following years.[1] The first trainset, 2121, was delivered from the J-TREC factory in Yokohama in late November 2017, and shown off to the media on 30 November 2017.[7] The second trainset, 2122, was delivered from the J-TREC factory in Niitsu, Niigata, in February 2018.[8]

The first sets entered service on 28 March 2018.[9]

Interior

Passenger accommodation consists of high-back longitudinal seats.[1] In addition to passenger information screens placed above the doorways and car ends, LCD screens are also located above the seats.[1] Security cameras are installed in the cars.[1]

  • 2020 series interior view

Formation

The trains are formed as follows, with five motored ("M") cars and five non-powered trailer ("T") cars, and car 1 at the Shibuya end.[6][5][10]


← Shibuya
Chūō-Rinkan →

Car No.12345678910
Designation
KuHa 2120
(Tc2)
DeHa 2220
(M2)		 < >
DeHa 2320
(M1)
SaHa 2420
(T3)
SaHa 2520
(T2)		 <
DeHa 2620
(M3)
SaHa 2720
(T1)
DeHa 2820
(M2)		 < >
DeHa 2920
(M1)
KuHa 2020
(Tc1)
Equipment  VVVF
SIV		VVVF
CP		  VVVF VVVF
SIV		VVVF
CP
Weight (t) 31.533.533.527.827.532.027.533.533.531.4
Capacity (total/seated) 143/45155/48155/51155/51155/51155/51155/51155/51155/51143/45
Numbering 2121
:
2125		 2221
:
2225		 2321
:
2325		 2421
:
2425		 2521
:
2525		 2621
:
2625		 2721
:
2725		 2821
:
2825		 2921
:
2925		 2021
:
2025
2126 2226 2326
(6321)		 2426 2526 2626 2726 2826 2926 2026
2127 2227 2327
(6322)		 2427 2527 2627 2727 2827 2927 2027
2128
:
2148		 2228
:
2248		 2328
:
2348		 2428
:
2448		 2528
:
2548		 2628
:
2648		 2728
:
2748		 2828
:
2848		 2928
:
2948		 2028
:
2048

Key

Build histories

The manufacturers and delivery dates for the fleet are as shown below.

Set No. Manufacturer Date delivered Notes
2121F J-TREC, Yokohama November 2017[7]
2122F J-TREC, Niitsu February 2018[8]
2123F J-TREC, Niitsu February 2018[11]
2124F J-TREC, Niitsu 6 June 2018[5]
2125F J-TREC, Niitsu 27 June 2018[5]
2126F J-TREC, Niitsu 30 October 2018[5] Car 3 is a former 6020 series car.[10]
2127F J-TREC, Niitsu 5 December 2018[5] Car 3 is a former 6020 series car.[10]
2128F J-TREC, Niitsu 6 March 2019[5]
2129F J-TREC, Niitsu 27 March 2019[5]
2130F J-TREC, Niitsu 21 August 2019[5]
2131F J-TREC, Yokohama 31 October 2019[5]
2132F J-TREC, Niitsu 17 January 2020[5]
2133F J-TREC, Niitsu 14 February 2020[5]
2134F J-TREC, Niitsu 4 March 2020[5]
2135F J-TREC, Niitsu 25 March 2020[5]
2136F J-TREC, Niitsu 15 April 2020[5]
2137F J-TREC, Niitsu 13 May 2020[5]
2138F J-TREC, Yokohama 17 September 2020[5]
2139F J-TREC, Niitsu 6 August 2020[5]
2140F J-TREC, Niitsu 2 September 2020[5]
2141F J-TREC, Niitsu 9 December 2020[5]
2142F J-TREC, Niitsu 7 January 2021[5]
2143F J-TREC, Niitsu 18 March 2021[5]
2144F J-TREC, Niitsu 15 April 2021[5]
2145F J-TREC, Niitsu 23 May 2021[5]
2146F J-TREC, Niitsu 11 June 2021[5]
2147F J-TREC, Niitsu 15 July 2021[5]
2148F J-TREC, Niitsu 26 August 2021[5]

3020 series
Tokyu 3020 series
A 3020 series train in June 2021
ManufacturerJ-TREC
DesignerTanseisha (overseer)
Family nameSustina S24 series
Constructed2019
Entered service5 January 2020
Number built24 vehicles
Number in service18 vehicles (3 sets)
Formation6 cars per trainset
Future: 8 cars per trainset
Fleet numbers3121–3123
Operator(s) Tokyu Corporation
Line(s) served Tokyu Meguro Line
Specifications
Car body constructionStainless steel
Doors4 pairs per side
Traction systemVariable frequency
Electric system(s)1,500 V DC overhead catenary
Current collection methodPantograph
Track gauge1,067 mm (3 ft 6 in)

On 26 March 2019, Tokyu Corporation announced the introduction of new 3020 series trains on their Meguro Line.[2] The first set of eight cars was delivered in April 2019.[12] A second set of eight cars was transferred from J-TREC in Yokohama to Nagatsuta in May 2019.[13] Trial runs on the Den-en-toshi Line began in June 2019.[14]

The first 3020 series set entered revenue service on 5 January 2020.

Interior

Passenger accommodation consists of high-back seating.[2] The trains are also fitted with security cameras and air purifiers.[15]

  • Interior view
  • Wheelchair space (right)
  • Passenger information displays

Formation

The trains are operated as six-car sets.[2] They were built as eight-car sets, but two cars per train will be stored until 2022, when platform doors are extended to fit 8-car trains as part of Tokyu Corporation's strategy to cope with high demand on the Meguro Line and for the opening of the Sōtetsu Tōkyū Link Line.[16] All three trainsets are formed as follows:


← Meguro
Hiyoshi →

Car No. 1 2 3 4 5 6
Designation
KuHa 3120
(Tc2)
DeHa 3220
(M2B)		 < >
DeHa 3320
(M1B)
DeHa 3620
(M2A)		 < >
DeHa 3720
(M1A)
KuHa 3820
(Tc1)
Equipment BT VVVF
SIV		 VVVF
CP		 VVVF
SIV		 VVVF
CP		 BT
Weight (t) 31.5 33.3 33.3 33.3 33.3 31.9
Numbering 3121
:
3123		 3221
:
3223		 3321
:
3323		 3621
:
3623		 3721
:
3723		 3821
:
3823

Key


6020 series
Tokyu 6020 series
Set 6121 in service in December 2018
In serviceMarch 2018 – Present
ManufacturerJ-TREC
DesignerTanseisha (overseer)
Built atYokohama
Family nameSustina S24 series
Constructed2017–2018
Entered service28 March 2018
Number built16 vehicles
Number in service14 vehicles (2 sets)
Formation7 cars per trainset
Fleet numbers6121–6122
Operator(s) Tokyu Corporation
Line(s) served
Specifications
Car body constructionStainless steel
Car length20 m (65 ft 7+3⁄8 in)
Doors4 pairs per side
Electric system(s)1,500 V DC Overhead catenary
Current collection methodPantograph
Track gauge1,067 mm (3 ft 6 in)

Details of the 6020 series were officially announced on 12 October 2017.[3] The first set was delivered from the J-TREC factory in Yokohama in December 2017,[17] followed by a second in January 2018.

The first sets entered service on 28 March 2018.[9]

In both sets, car 3 was replaced by a new-build "Q Seat" car built in October 2018. The outgoing cars were subsequently used in 2020 series sets 2126F and 2127F. The Q Seat cars are usually arranged in longitudinal mode, but on specific evening express trains from Ōimachi to Nagatsuta, they are arranged in transverse mode and can be used only with a reservation by paying a small surcharge.[18]

  • Q Seat car

Interior

Passenger accommodation consists of high-back longitudinal seating throughout,[3] except car 3, which is a "Q Seat" car that features rotating pairs of seats that can be arranged in longitudinal mode or transverse mode.[18] Security cameras are installed in the cars.[3]

  • Interior view
  • Interior view of a Q Seat car
  • Rotating seat

Build histories

The manufacturers and delivery dates for the fleet are as shown below.

Set No. Manufacturer Date delivered
6121 J-TREC, Yokohama December 2017[17]
6122 J-TREC, Yokohama January 2018[19]

References

This article incorporates material from the corresponding article in the Japanese Wikipedia.
