Lianggang Express line

Lianggang Express Line (Chinese: 两港快线; pinyin: Liǎng gǎng kuài xiàn) is a commuter rail line currently under planning on the Shanghai Suburban Railway, and will be run by China Railway. The Lianggang Express Line is a fast connection channel between the Lingang New Area and Pudong Hub, Hongqiao Hub and Shanghai's main urban area. It is an important support for the Lingang New Area to radiate the Yangtze River Delta, and helps the Lingang New Area to achieve the connection between the inside and outside, land, sea and air hub function.[1] It was published for comments between April 29th to May 28th by the Shanghai Transportation Commission. The special plan (draft) was for the selection of the Shanghai City Line Lianggang Express Line (Pudong Hub-Lingang Industrial Park Station).

For the metro line formerly known as Lingang line, see Line 16 (Shanghai Metro).
Lianggang Express Line (两港快线)
Overview
Other name(s)Nanhui Branch Line and Free Trade Zone Express Line
StatusPlanned
OwnerShanghai Shen-Tie Investment Company Limited
LocalePudong, Shanghai, China
TerminiLingang Industrial Park
Mainline: Shanghai East railway station;
Branch: Pudong International Airport T3 Terminal
Connecting lines 2   21   Maglev   Airport Link
Stations6
Service
TypeCommuter rail
SystemShanghai Suburban Railway
Operator(s)China Railway Shanghai Group
Depot(s)Xiayan Road
Rolling stock4 car CRH6F trains
History
Planned opening2024
Technical
Line lengthMain line: 26.3 km (16 mi)
Branch line: 8.8 km (5 mi)
Number of tracks2
Track gauge1,435 mm (4 ft 8+1⁄2 in)
ElectrificationOverhead lines (AC 25 kV)
Operating speed160 km/h (99 mph)

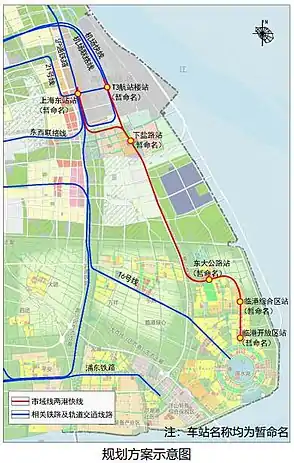

Route map

It runs from Lingang Industrial Park in Pudong to Shanghai East railway station (mainline) or Pudong International Airport T3 Terminal (branch) in Pudong. The 26.3-kilometer express line (and 8.8km branch) is expected to shorten the travel time between Lingang and Pudong International Airport to under 15 minutes upon completion in 2024. Construction is expected to start in 2021. The line is expected to open at the end of 2024. It will achieve one-hour access to important external transportation hubs for Lingang.

A rail transit-style bus operation is adopted, the platform design, train schedule and other aspects are similar to subways, and citizens can use public transportation cards to enter and exit the station.[2]

History

In 2016, the Nanhui branch line was included in the plan in the Shanghai 2035 general plan. In November 2019, Zhu Zhisong, Deputy Secretary-General of the Shanghai Municipal Government and Executive Deputy Director of the Management Committee of the Lingang New Area of the Pilot Free Trade Zone, revealed that the Lingang New Area is connected to downtown Shanghai, Pudong International Airport, Hongqiao International Airport, Shanghai South railway station. The urban rail transit express network of the main hub is under preparation; the preliminary study of the rail transit connecting Pudong International Airport and the new area-the free trade zone express had been launched. The "Pudong Comprehensive Transportation Hub Special Plan" announced in February 2020 mentioned the Lianggang Express Line. The "Three-year Action Plan for Traffic Improvement in the Lingang New Area of China (Shanghai) Pilot Free Trade Zone (2020-2022)" published in March 2020 proposes to accelerate the implementation of the Lianggang Express Line before 2022. In April 2020, the "Higher Quality Integrated Development Plan for Transportation in the Yangtze River Delta" proposed "Planning and Construction of Shanghai Nanhui Branch Line". The development plan will last until 2025 and look forward to 2035. In June 2020, the China Railway Design Corporation began to conduct a feasibility study. The preliminary acceptance test will be completed in September 2020. From April 29th to May 28th, 2021, the Municipal Transportation Commission publicized the special plan (draft) for the selection of the Shanghai Lianggang Express Line (Pudong Hub ~ Lingang Industrial Park Station).

Proposed stations

Service routes
  • M - Mainline: Lingang Industrial Park ↔ Shanghai East railway station
  • B - Branch line: Lingang Industrial Park ↔ Pudong International Airport T3 (through operation on airport link line)
Routes Station name Connections Distance
km		 Location
M B English Chinese
Mainline
●● Lingang Industrial Park 临港开放区 Pudong
●● Lingang Mix-used Area 临港综合区
●● Dongda Highway 东大公路
●● Xiayan Road 下盐路
●| Shanghai East railway station 上海东站  21  (planned)  Airport Link   East West Link  (planned) (u/c)
Branchline
|● Pudong International Airport T3 浦东国际机场T3  2   21  (planned)  Maglev  (planned) Shanghai Pudong Airport APM  Airport Link  (through operations)

Through operations
Through operation on Airport Link line (via T3)

Important stations

The route from Pudong International Airport T3 terminal heads south along Lianggang Avenue, turns east at Dongda Highway, turns south at Qiaojiang Road, and enters the central activity area of Lingang New Area; the other line leads from Shanghai East Railway Station , and connect to Xiayan Road Station along the south side of Shenjiahu Expressway.

In terms of operation mode, rail transit-style bus operation is adopted; platform design, train schedule and other aspects are similar to subways, and citizens can use Shanghai public transport card to enter and exit the station. It will use EMU trains with a maximum operating speed of 160 km/h. Most of the route will be elevated. The underground sections are:[3]

  • Pudong International Airport T3 to Shenjiahu Expressway;
  • southern section of the Lianggang Avenue Interchange;
  • station section from Qiaojiang Road to Lingang Industrial Park.

There are 3 underground stations

  • Pudong International Airport T3
  • Lingang Mixed-use Area Station
  • Lingang Industrial Park Station

and 3 above-ground stations:

Future extensions

Future extension to Situan is under further planning.[4]
