Wuxi Metro

Wuxi Metro is the rapid transit system of Wuxi, Jiangsu province, China. Line 1 began operations on 1 July 2014,[1] and Line 2 on 28 December 2014.[2][3] Further plans to build 6 more lines and to connect system with the Shanghai Metro and Suzhou Metro are under active review.[4][5] In March 2019, the Wuxi Metro began selling "Twin City" metro cards that could be used on both the Ningbo Metro and Wuxi Metro.[6]

Wuxi Metro
Overview
LocaleWuxi, China
Transit typeRapid transit
Number of lines3
Number of stations69
Daily ridership0.2232 million (2016 avg.) 0.4654 million (5 April 2019 record)
Annual ridership81.468 million (2016)
Websitehttp://www.wxmetro.net/front/index.html
Operation
Began operationJuly 1, 2014 (2014-07-01)[1]
Operator(s)Wuxi Metro Corporation
CharacterMostly underground, with some elevated alignment
Number of vehicles45 trainsets (April 2019)
Train length6–cars
Technical
System length89.4 km (55.6 mi)
Track gauge1,435 mm (4 ft 8+1⁄2 in) standard gauge

Lines in operation

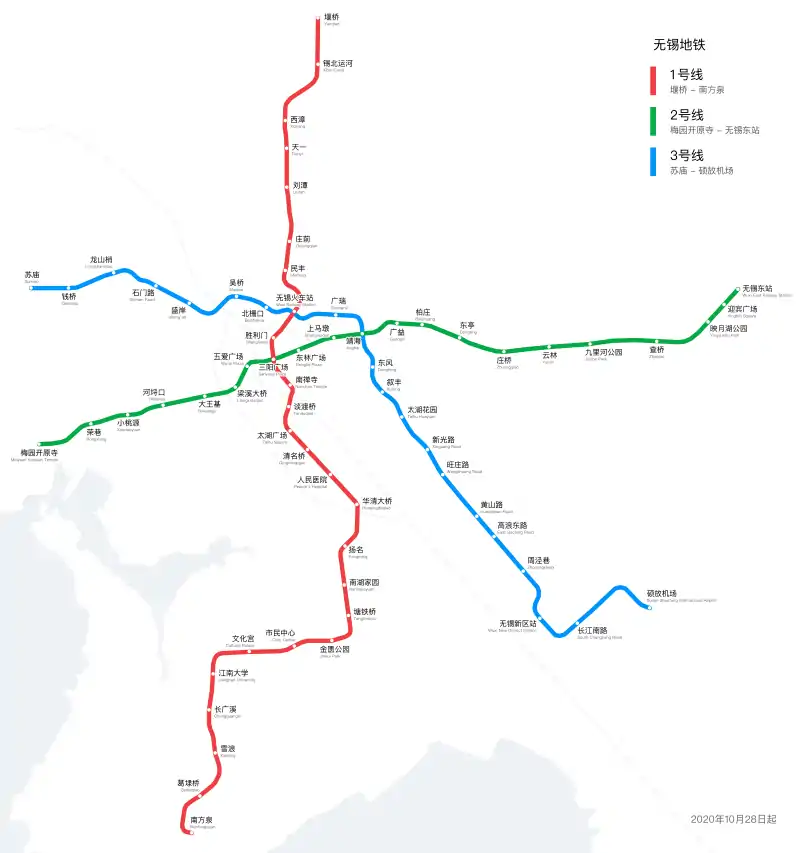

Map of Wuxi Metro
Line Termini
(District)		 Commencement Newest
Extension		 Length
km		 Stations
01 1  Yanqiao
(Huishan)		 Nanfangquan
(Binhu)		 2014 2019 34.6 27
01 2  Meiyuan Kaiyuan Temple
(Binhu)		 Wuxi East Railway Station
(Xishan)		 2014 — 26.3[7] 21[lower-alpha 1]
01 3  Sumiao
(Binhu)		 Sunan Shuofang International Airport
(Xishan)		 2020 — 28.5 21
Total 89.4 69
  1. Anzhen station is not opened.

Line 1
Main article: Line 1 (Wuxi Metro)

Line 1 runs north to south for 34.6 kilometers (21.5 mi) serving 27 stations. Most of the route is underground, with only 5 stations[1] and 7 kilometers (4.3 mi) running on an elevated alignment. CSR Zhuzhou supplied 23 six-car trainsets for the line.[8]

Line 2
Main article: Line 2 (Wuxi Metro)

Line 2 runs east to west for 26.3 kilometers (16.3 mi)[7] with 21 stations (originally 22 stations, but Anzhen station is not opened), with 6.7 kilometers (4.2 mi) being elevated[7] and the remainder underground. CSR Puzhen supplied a fleet of 120m-long six-car Type B metro trains for the line.[3]

Line 3
Main article: Line 3 (Wuxi Metro)

Line 3 runs east to west for 28.5 kilometers (17.7 mi) with 21 stations

Construction Award

Wuxi Metro Line 1 won China's highest honor for engineering construction and innovation, the National Quality Engineering Golden Award.[9]

Future development
Map of Wuxi Metro with under construction lines.

According to the long-term planning of Wuxi Metro, it will form a network of 8 lines and 1 branch line, and the network would be 297 km (185 mi) long in long-term planning.[10]

Lines 1, 2 and 3 would be the main lines, radiating from the city center, while Lines 4 and 5 would be the tangential lines for suburb to suburb traffic. Environmentally friendly and energy efficient designs will be integrated into construction and design of the stations.[11]

Under construction
Route Name Termini Planned Opening Length Stations Status Notes
 4  1st Phase Liutan Wuxi Taihu International Expo Center[12] 2021 25.4 km[13] 18 Under testing[13] [13][12]
 S1  Wuxi–Jiangyin intercity railway or Xicheng line Yanqiao Jiangyin Waitan 2024 30.4 km 9 Under construction[14] [15]

Line S1 (Wuxi–Jiangyin intercity railway)

Line S1 of Wuxi Metro, also known as Wuxi–Jiangyin intercity railway (无锡至江阴城际轨道交通) or Xicheng line (锡澄线) started construction on October 17, 2019.[14] It will be 30.4 km in length with 9 new stations, including 5 underground stations and 4 elevated stations. The line will run from Yanqiao station on Line 1 to Jiangyin Waitan station in Jiangyin (a county-level city administered by Wuxi).[15] Line S1 will through-operate with Line 1.[14]

Line S2 (Wuxi–Yixing intercity railway)

Line S2 of Wuxi Metro, also known as Wuxi–Yixing intercity railway (无锡至宜兴城际轨道交通) or Xiyi line (锡宜线) is under planning.[16] Yixing is a county-level city administered by Wuxi. It will be 72 km in length from Yixing railway station to Sunan Shuofang International Airport on Line 3.

Phase 3 construction plan (2021-2026)

The Phase 3 construction plan (2021-2026) of Wuxi Metro will add 59.8 km of new lines and extensions.[10]

Route Name Termini Planned Opening Length Stations Status References
04 4  2nd Phase Expo Center Xishi Road 8.6 km 6 Planned [10]
05 5  Tangcheng Xinyun Road 28.9 km 22 Planned [10]
06 6  Gonghu Wetland Park Guangyuan Road 22.3 km 16 Planned [10]

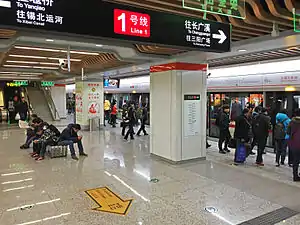

Line 1 station
